Trim & Final Line · Ergonomic Cabin Seat Loading
Custom pneumatic seat air grippers and cantilevered manipulators that pick front and rear seats from the sequencing conveyor and float them cleanly through the door opening onto the cabin floor pan—with zero back strain and zero trim damage.
Power-adjustable leather seats with side airbags, heaters, and heavy steel seat tracks weigh 25–45 kg and must be cantilevered over the door sill and B-pillar at arm's length. Manual two-person lifting slows cycle time, risks lower-back injuries, and frequently scratches door sills or centre consoles with exposed seat rails.
Ovity Sdn. Bhd. manufactures custom pneumatic seat air grippers and articulated loading manipulators in Puchong, Selangor for OEM plants and Tier-1 automotive line integrators. Whether clamping by the seat track, headrest frame, or under-cushion frame, our grippers hold the seat rock-steady in zero-gravity balance from conveyor pick-up to floor-pan bolting.
Ovity's 100% pneumatic balancers, air hoists, KH Track rails, and mechanical reaction arms operate reliably in Malaysia's high shop-floor heat and humidity, require zero expensive imported servo drives or PCB boards, and are supported directly by our Puchong engineering and fabrication team.
Every Ovity system is engineered and supported from Puchong, Selangor around your payload (kg), torque (Nm), overhead span, conveyor height, and cycle-time requirements.
| Typical Payload Range | 20 kg – 90 kg (single power front seats, captain chairs, and 60/40 rear bench assemblies) |
|---|---|
| Mounting Options | Column Pedestal / Overhead Fixed / Overhead Light-Track X-Y Rail |
| Gripper Actuation | Pneumatic parallel / toggle clamping jaws with non-marring protective pads and two-hand safety release |
| Control System | Pneumatic Zero-Gravity Auto-Balance or Dual-Balance with rotational swivel & pneumatic brakes |
| Safety Standard | Anti-drop check valve + part-present interlock + DOSH ergonomic compliance |
| Air Supply | 6–7 bar clean dry compressed air |
| Local Support | Designed & fabricated in Puchong, Selangor |
Proven on Malaysian assembly lines. Ovity systems—including our KH Track overhead rails, Zero-Gravity Air Balancers, Pneumatic Air Hoists, DC Torque Reaction Arms, and manipulators at Chery Shah Alam, Perodua EV, Stellantis, and Kia lines—are engineered and supported locally from Puchong, Selangor.
Book a Free Station AssessmentPlanning a new CKD model launch, overhead KH Track runway, air balancer/hoist installation, or high-torque nutrunner station? Use the interactive Station & Equipment RFQ Spec Checklist to send your requirements directly to Fred and our engineering team in Puchong.
Select your equipment or assembly station parameters below and send directly to our Puchong engineering team via WhatsApp or Email for a fast layout proposal & quotation.

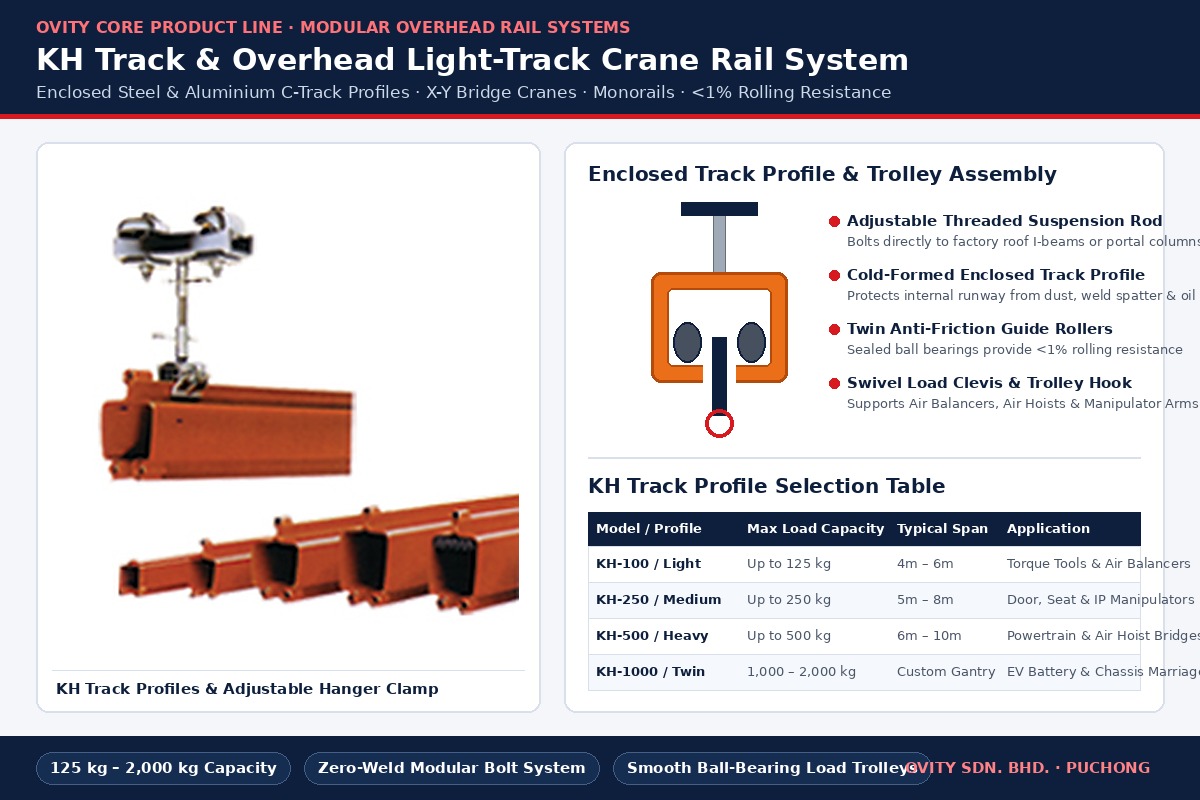

Modular enclosed aluminium and steel overhead light-crane rails, X-Y bridge systems, monorails, turntables, and ultra-low-friction load trolleys (<1% rolling resistance) for manipulators, air balancers, and air hoists.

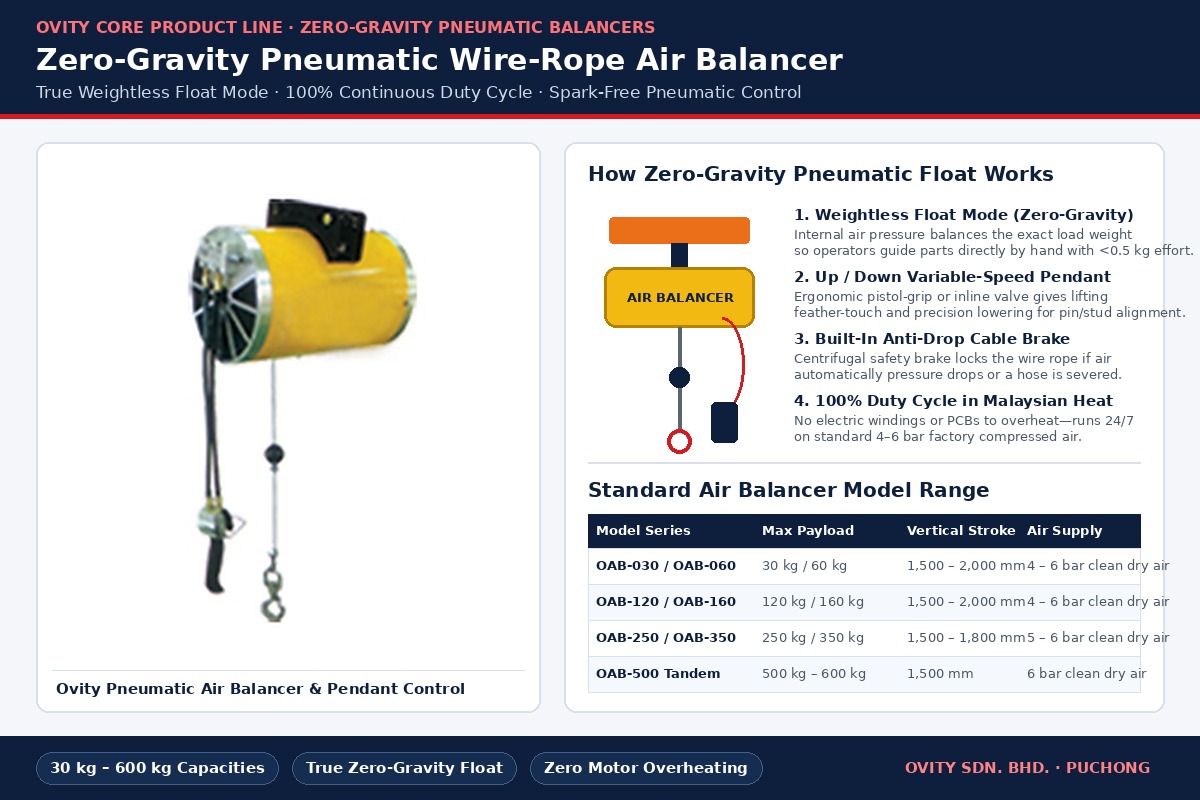

Overhead wire-rope pneumatic air balancers with true weightless float mode and up/down pendant control (30 kg to 600 kg capacity, 100% duty cycle, zero motor overheating).

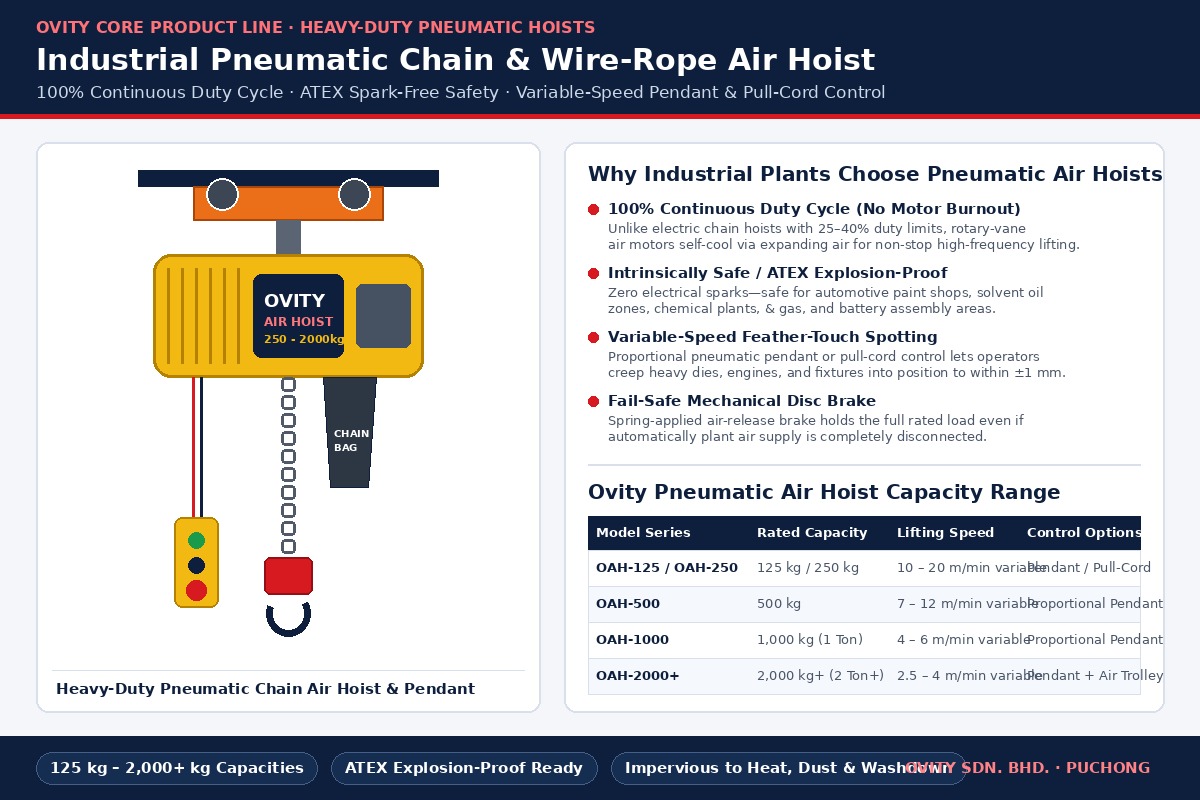

Heavy-duty pneumatic chain and wire-rope air hoists (125 kg to 2,000+ kg) with 100% continuous duty cycle, variable-speed spotting, and intrinsically safe ATEX spark-free operation.

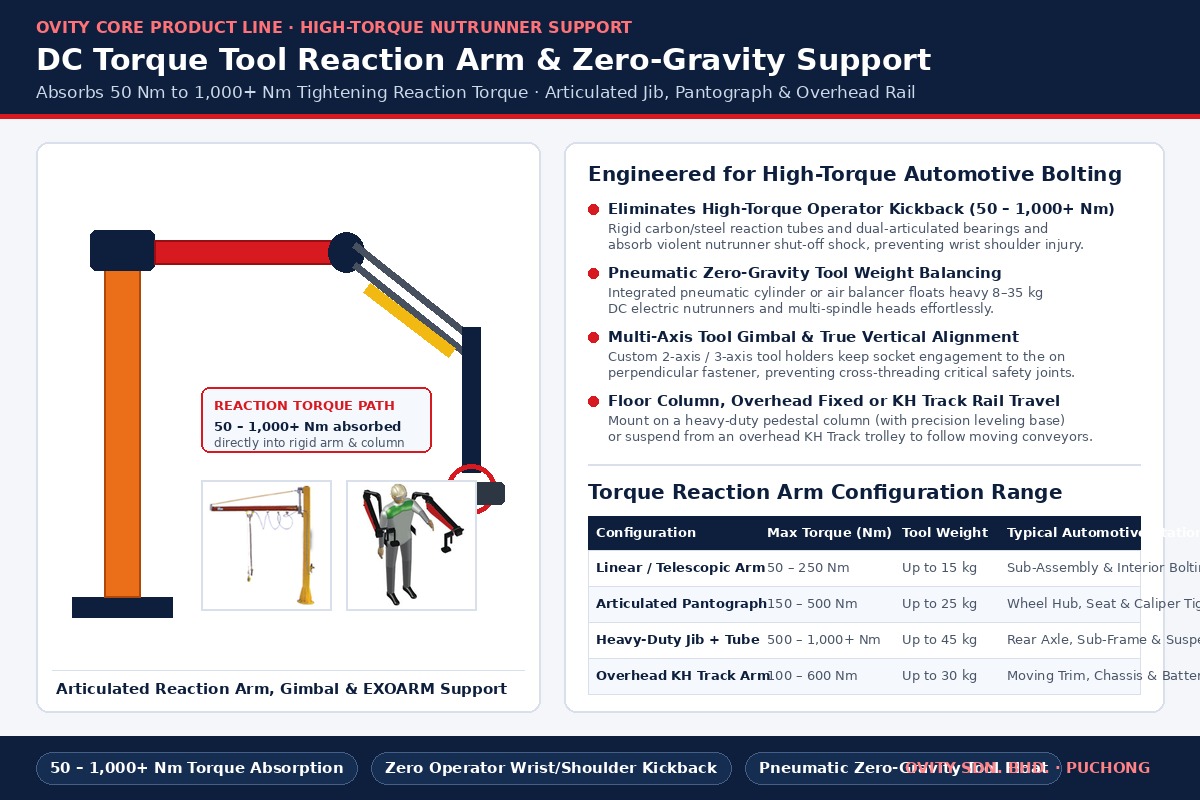

Articulated carbon/steel torque reaction arms, pantograph linkages, and zero-gravity tool gimbals that absorb 50 Nm to 1,000+ Nm tightening reaction torque with zero operator wrist or shoulder kickback.
Cantilevered pneumatic C-arm manipulators reaching cleanly into the vehicle cabin—installed and operating at Chery's Shah Alam assembly plant.
Smooth door removal, tilting, and hinge alignment on overhead aluminium/steel light-track rails—running at Stellantis and major Malaysian plants.
Heavy-duty pneumatic manipulators and insulated grippers for EV battery module assembly and pack handling—proven on Malaysian EV lines including Perodua.
High-cycle wheel and tyre pick-up from conveyor, effortless 90° rotation, and instant hub stud alignment without back strain.
Heavy-payload pneumatic manipulators for engine dressing, sub-frames, axles, and McPherson strut installation.
